    10mg Bias 50g Range Flexible Accelerometer 1 Month Stability

    Ask Lasest Price
    Model Number : JB4-01
    Price : 1574
    Payment Terms : T/T
    Supply Ability : 500/month
    Delivery Time : 7 days for sample
    Brand Name : Firepower
    • Product Details
    • Company Profile

    10mg Bias 50g Range Flexible Accelerometer 1 Month Stability

    JB4 quartz flexure accelerometer inertial navigati...

    1 month stability flexible accelerometer 10mg bias 50g range acceleration meter


    Applications

    Drilling and Inclination Measurement

    Aeronautics and Astronautics

    Instruments and Equipment


    Performance Characteristics


    No.ParametersJ43-01
    1Range±30g
    2Threshold5μg
    3Bias K0/K1≤±10 mg
    4Scale factor K11.1~1.4 mA/g
    5Second order nonlinearity coefficient K2≤±20μg /g2
    60g 4 hours short-term stability≤20 μg
    71g 4 hours short-term stability≤20 ppm
    8Bias comprehensive repeatability σK0 (1σ,1 month)≤50 μg
    9Scale factor comprehensive repeatability σK1/K1 (1σ,1 month)≤80 ppm
    10Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month)≤±30 μg /g2
    11Bias thermal coefficient (full temp. mean)≤±50 μg /℃
    12Scale factor thermal coefficient (full temp. mean)≤±100 ppm /℃
    13Noise3000μg-rms (0-10000Hz)
    14Natural frequency350~800 Hz
    15Bandwidth800~2500 Hz
    16Random vibration10g(20-2000Hz)
    17Impact150g,5ms,1/2sin
    18Working temp.-55~+180℃
    20Power supply±12~±15V
    21Consume current≤±20mA
    22Thermal sensorCustomizable
    23SizeФ18.2X23mm
    24Weight≤65g

    JB4 series quartz flexible accelerometer is a high temperature and shock resistant accelerometer product with excellent repeatability, startup performance, high temperature shock resistance and high reliability. It can be used for both static testing and dynamic testing. A standard vibration sensor.

    The product adopts a unique high-temperature and shock-resistant design, packaging process and special circuit. The output current of the product is proportional to the measured acceleration, providing static and dynamic acceleration measurement. Users can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor according to the user's needs, and reduce the influence of the ambient temperature.

    Application fields: inclination test of bridges, dams, oil wells, coal mines, etc., high-speed railway control, stability control of ships, etc.

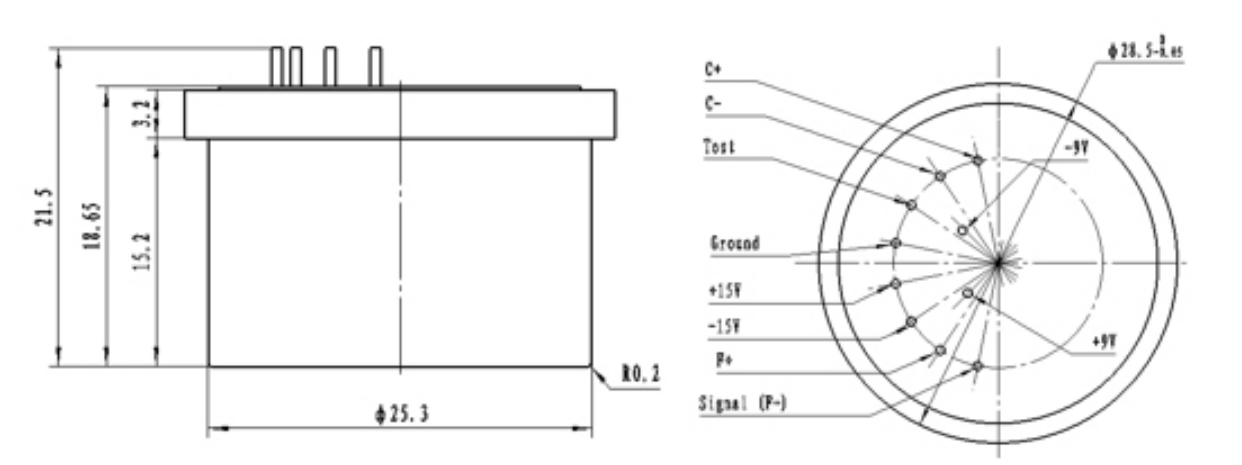

    Dimensions

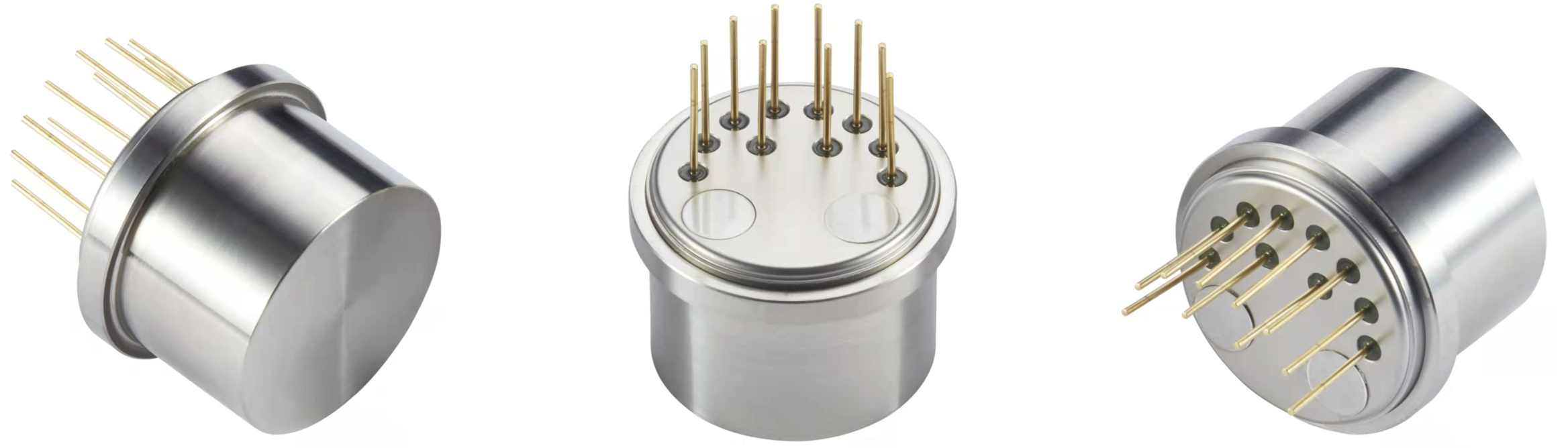

    Product Show:


    Quality assurance

    1. Every production process has a special person to test to ensure quality
    2. Have professional engineers to check the quality
    3. All products have passed all factory test before leave factory
