| Model Number : | MGZ1 |
| Payment Terms : | T/T |
| Supply Ability : | 500/month |
| Delivery Time : | 7 days for sample |
| Brand Name : | Firepower |

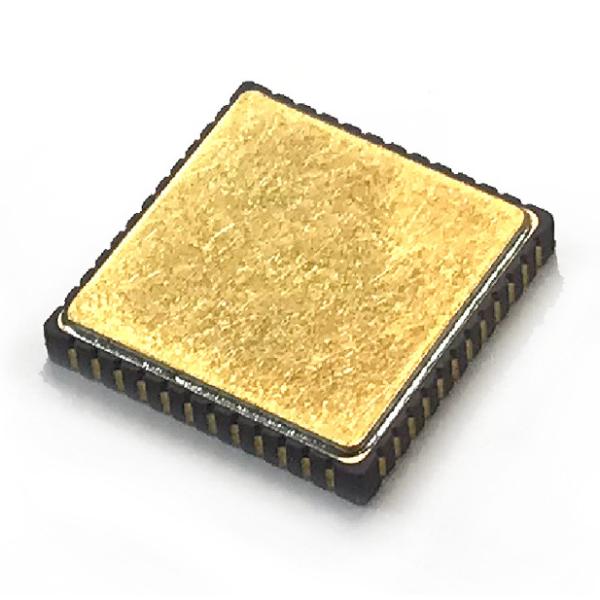

MINI GYRO BOARD HIGH PERFORMANCE GYRO BOARD PRICE MGZ GYRO SENSOR
ABOUT FIREPOWER
Firepower Technology (Shenzhen) Co., Ltd. was established in 2013
and registered in Shenzhen Nanshan High-tech Park. The company is
high-tech enterprise dedicated to R&D and production of quartz
accelerometer, FOG, IMU, INS, rate table and other products.
Firewpower technology has invested in several automatic production
lines in xi'an, shenzhen,hebei, including fiber optic gyroscope,
mems inertial navigation, quartz accelerometer, electronic
countermeasure communication products, inertial simulation
equipment production lines in china. Firepower technology always
puts scientific research innovation, technological exploration and
self-control in the first place.
The company has developed a series of autonomous navigation
products with independent intellectual property rights, which are
specially used in the field of autonomous navigation including
uavs, vehicles, ships with the self-developed array algorithm as
the core technology, the company has developed a series of inertial
navigation products to solve the current position,
three-dimensional attitude and speed of the user carrier, realizing
the autonomous navigation control of the carrier.
About product
| performance | MGZ1 | MGZ2 | MGZ3 | MGZ4 | MGZ5 | MGZ6 | |
| Range | deg/s | 500 | 500 | 500 | 400 | 400 | 8000 |
| Band Width @3DB customized) | Hz | 250 | 250 | 250 | 200 | 100 | 200 |
| Output accuracy(digital SPI) | bits | 24 | 24 | 24 | 24 | 24 | 24 |
| Output rate(ODR)(customized) | Hz | 12K | 12K | 12K | 12K | 12K | 12K |
| Delay(customized) | ms | <2 | <2 | <2 | <2 | <3 | <2 |
| Bias stability(Allan Curve@25℃) | deg/hr(1o) | <0.5 | <0.2 | <0.3 | <0.1 | <0.1 | <5 |
| Bias stability(10saverage@25℃) | deg/hr(1o) | <3 | <1 | <2.5 | <0.5 | <0.5 | <20 |
| Bias stability(1serror@25℃) | deg/hr(1o) | <9 | <3 | <7.5 | <1.5 | <1.5 | <60 |
| Bias temperature drift | deg/Hr/C | <2 | <1 | <2 | <0.5 | <0.5 | <5 |
| Bias repeatability(25℃) | deg/hr(1o) | <3 | <1 | <3 | <0.5 | <0.5 | <5 |
| Scare factor repeatability(25℃) | ppm(1o) | <50ppm | <50ppm | <50ppm | <50ppm | <20ppm | <10ppm |
| Scare factor drift(1sigma) | ppm(1o) | ±200ppm | ±200ppm | ±200ppm | ±200ppm | ±100ppm | ±100ppm |
| Scare factor nonlinear(in full temperature) | ppm | <300ppm | <300ppm | <300ppm | <300ppm | <200ppm | <100ppm |
| Angular random walk(ARW) | °/√h | <0.15 | <0.15 | <0.125 | <0.025 | <0.025 | <1 |
| Resolution | °/hr | <1 | <0.5 | <1 | <0.1 | <0.1 | <5 |
| Noise(Peak to Peak) | deg/s | <±0.25 | <±0.20 | <±0.2 | <±0.1 | <±0.1 | <±1 |
| GValue sensitivity | °/hr/g | <3 | <1 | <3 | <1 | <1 | <3 |
| Vibration rectification error(12gRMS,20-2000) | °/hr/g(rms) | <3 | <1 | <3 | <1 | <1 | <1 |
| Power-on time (valid data) | s | 1 | 1 | 1 | 1 | 1 | 1 |
| Environmental suitability | |||||||
| Impact (power on) | 500g (1ms, 1/2 sine) | ||||||
| Impact resistance (power off) | 1wg 5ms | ||||||
| vibration(power on) | 12g rms (20Hz to 2kHz) | ||||||
| Working temperature | -45℃----+85℃ | ||||||
| Store temperature | -50℃----+105℃ | ||||||
| High overload resistance(poweroff) | 10000g | 20000g | |||||
|
|
