High Performance Single Axis Quartz Accelerometer Vibration Sensor for Oil and Gas Industry

Product Introduction

AV1 Series quartz flexibility Accelerometer is a high accuracy Accelerometer with excellent long-term stability, repeatability, start-up performance,environmental adaptability and reliability making it a cost-effective inertial grade quartz flexible Accelerometer.
The Accelerometer output current and the force received are linear output, and the user can select the appropriate sampling resistor to achieve the highest accurate output. At the same time, the Tempe Sensor is built in, and the output current changes linearly with temperature. The user compensates the Deviation value and Scale factor to reduce the temperature effect (optional). The product can be used for both static and dynamic testing and is a standard vibration sensor.

Performance Characteristics

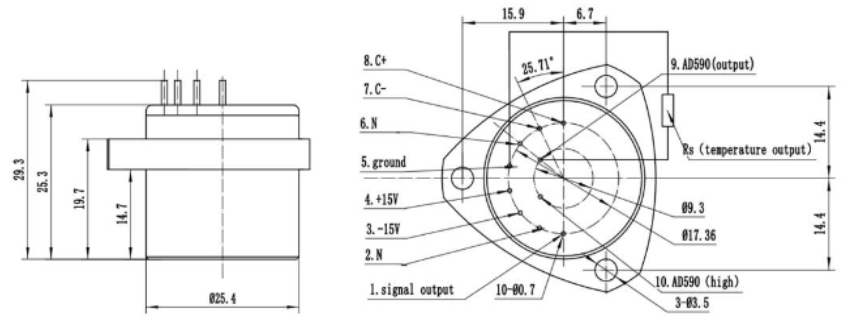

Outline drawing

Installation requirements
The flange surface of the sensor is the installation reference surface.

Precautions
The sensor is a wearing part. Please handle it with care and do not drop or touch it. The impact and vibration shall not exceed the technical requirements of the product. The sensor shall be packed reliably during transportation, and there must be no less than 20mm of buffer foam around it, and the sensor shall be fixed with foam. When multiple sensors are packed, ensure that they do not collide with each other.
Before power-on, check the wiring of each pin, which shall not be connected incorrectly.
The product is stored in the original packaging box in a dry and ventilated environment. Handle with care when moving.
Pay attention to electrostatic protection.

Shenzhen Fire Power Control Technology Co., Ltd. is a professional manufacturer specializing in the production of  electronic products and inertial devices, and providing technical consultation and export services. The company has a strong independent  team. The technical team is composed of many outstanding experts with more than 50 years of comprehensive industry  experience. The company has strong technical strength in the fields of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products, and is able to provide users with professional design, development, production and services of inertial devices and related simulation software.

Technical Advantages

Firepower technology fully possesses independent design capabilities in vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products.. We have accumulated over ten years of research and development experience in the fields of optical sensing, MEMS sensing, with strong technical strength. We have mastered multiple core technologies including MEMS gyroscope and acceleration chip design, multi-core fusion technology, silicon optical chip technology, optical sensing. With the accumulation of technology, we have the ability to scale up industries and are in a leading position worldwide. Not only can we provide customers with high-performance products, but we can also significantly reduce production costs.

Production Capacity

Firepower has four subsidiaries with production line respectively, which are MEMS inertial product production line, micro-nano integrated inertial production line,vibration acceleration sensor production line and angle test equipment production line. A total investment of 15, 000 square meters has been built for scientific research and production, including 650 square meters 10, 000-class clean rooms that meet national standards, electrical-mounting production lines and environmental testing centers.

With more than ten years development, Firepower has become a high-tech enterprise with high level of craftsmanship and comprehensive products range in China. We have complete production line from chips to finished products after all testing, providing first level products among peers in domestic and over-sea market.

Production Environment

We have built clean rooms, electrical assembly production line, and environmental testing center that comply with the national "Clean Building Design Specification". It has complete precision measuring instruments and testing equipment, angle testing systems, high and  low temperature test chambers, vibration and shock test benches, precision optical indexing heads, functional centrifuges, mechanical testing rooms ,anechoic chambers, multi axis angle test equipment and other instruments and testing equipment to ensure product quality.
