    Inertial Angular Rate Sensor , Optical Sagnac Effect Three Axis Gyro Sensor

    Ask Lasest Price
    Brand Name : Firepower
    Model Number : F060
    Certification : Military standard
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 50/month
    Delivery Time : 20 days for sample
    • Product Details
    • Company Profile

    Inertial Angular Rate Sensor , Optical Sagnac Effect Three Axis Gyro Sensor

    Three-Axis Fiber Optic Gyroscope Inertial Angular Rate Sensor Optical Sagnac Effect Gyro Sensor


    This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. The angular rate sensing unit of the product is an optical fiber ring, and a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and anticlockwise propagating light caused by the external physical angular rate, which is sensed by the optical fiber ring,At the same time, the voltage signal converted from the optical path difference signal is used for closed-loop feedback and control to realize the modulation and demodulation of the signal and achieve the purpose of high-precision angular velocity signal detection.


    Performance Characteristics

    Serial numberTest itemUnitTechnical requirements
    1Start times3 (the accuracy index is met after 15 s)
    2Zero biasº/h≤2
    3

    Zero bias stability

    (10 s smoothing, 1σ)

    º/h≤0.1
    4Zero-bias repeatabilityº/h≤0.1
    5Random walk coefficientº/h1/2≤0.01
    6Scale factor nonlinearityppm≤50
    7Scale factor repeatabilityppm≤50
    9Operating temperature-40~+60
    10Storage temperature-50~+70
    11Dynamic rangeº/s±500
    12Supply voltageV+5V
    13BandwidthHz>500
    14Steady-state power consumptionW≤6

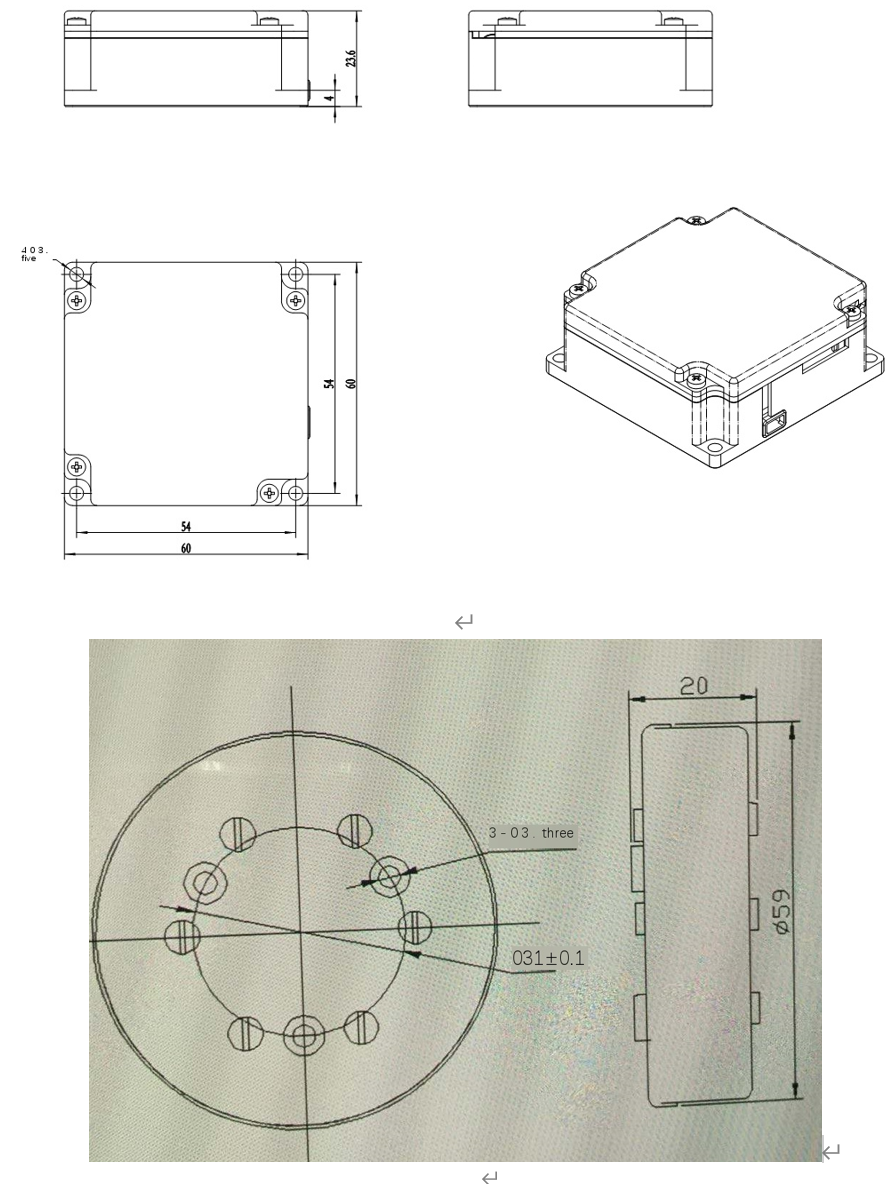

    Dimensions
