    RS232 High Speed Dual Axis Turntable for Precision Positioning

    Ask Lasest Price
    Brand Name : Firepower
    Model Number : 2ST-640A
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 pcs/5 months
    Delivery Time : 5 months
    • Product Details
    • Company Profile

    RS232 High Speed Dual Axis Turntable for Precision Positioning

    RS232 High Speed Dual Axis Turntable for Precision Positioning


    Product Description

    2TS-320B, tilting-type rate turntable are dual axis facet type mechanical shafting rate and positioning turntable. Inner loop is automatic main axis, owning functions of rate and positioning; outer loop is manual-operation tilting axis, owning functions of positioning. And they are also equipped with range adjustable heading axis. The turntable is equipped with standard serial port. Control and acquisition could be proceeded by computer, high test accuracy, high performance in rate smoothness, high accuracy positioning control. It is mainly used to dynamic and static test of inertial navigation system and device.

    Main Paremeter
    items2ST-320B2ST-640A
    Load capacity20kg30kg
    Max tested object sizeØ320 x 250mm400 x 400 x 400mm
    Table facet diameterØ320mmØ640mm
    Table facet flatness0.01mm0.01mm
    Table facet jerk value0.01mm0.01mm
    Table facet materialStainless steelGranite or stainless steel, super hard aluminum, casting
    wobble error±2''±2''
    Axes perpendicularity±2''±2''
    Rotary angle rangecontinuouscontinuous
    Heading adjustment range/accuracy±3/±2''±3/±2''
    Working modeInner loop: position, rateInner loop: position, rate
    Outer loop: position
    Machine body weightAbout 620kgAbout 1000kg
    Outline sizeAppr 800 x 670 x 920mmAppr 1600 x 1100 x 1500mm
    Slip rings40 rings x 3A60 rings x 2A
    Absolute zeroyes
    Electrical control cabinet19'' standard cabinet
    Height: 1600mm
    19'' standard cabinet
    Height: 1600mm
    Computer portIEE-488 or RS232RS232
    item2TS-320B2TS-640A
    Inner loop(principal axis)Outer loop(tilting axis)Inner loop(principal axis)Outer loop(tilting axis)
    Angular position measure accuracy±2''~±5''±2''~±5''±2''~±5''±2''~±5''
    Angular position measure resolution0.36''0.36''0.36''0.36''
    Angular position measure repeatibility±2±2±2±2
    rate range0.001°/s~720°/s0.001°/s~400°/s
    rate accuracy and smoothness(2~5) x 10-3
    (360° interval )
    (2~5) x 10-3
    (360° interval )
    Cycle pulse accuracy±2

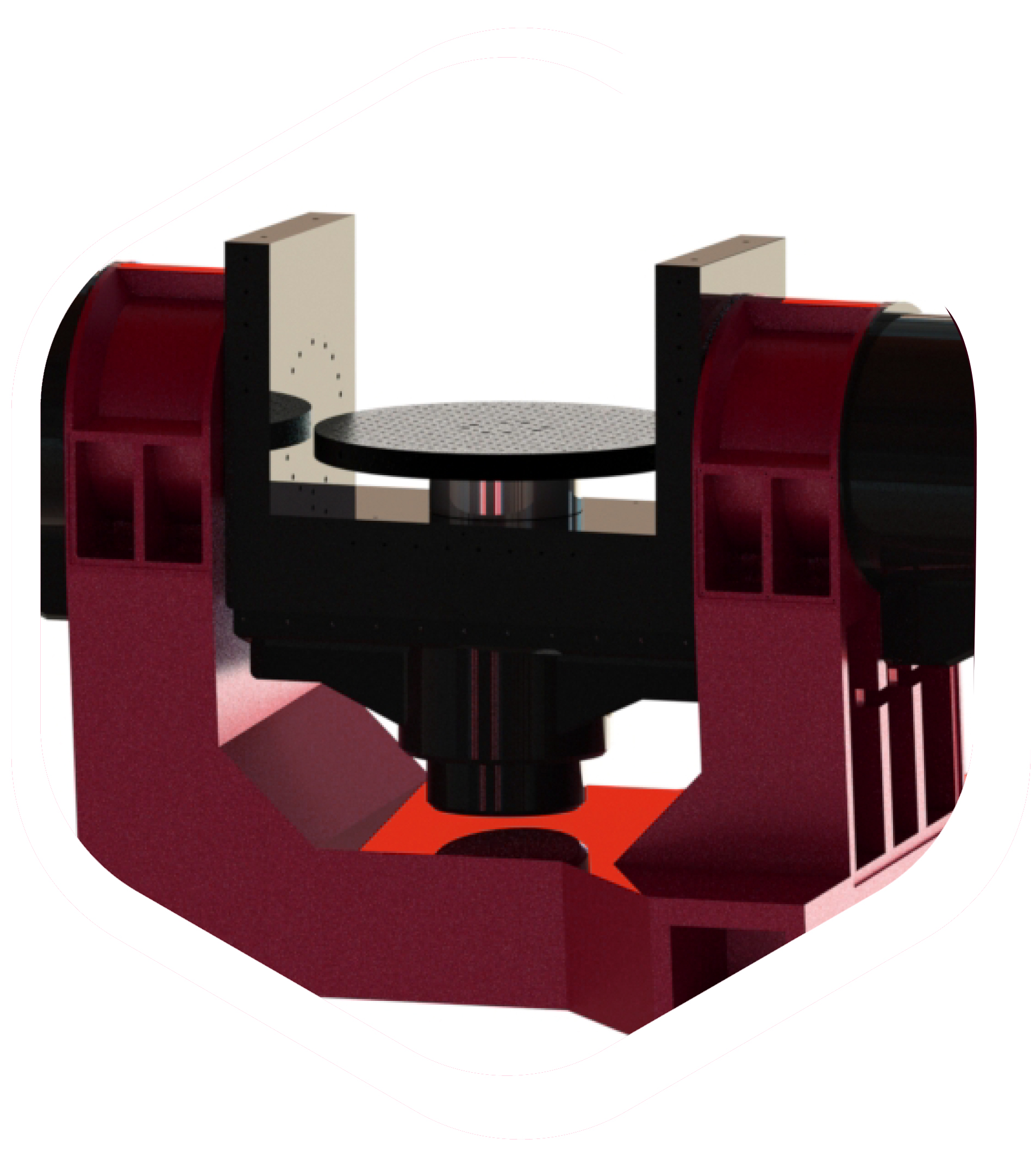

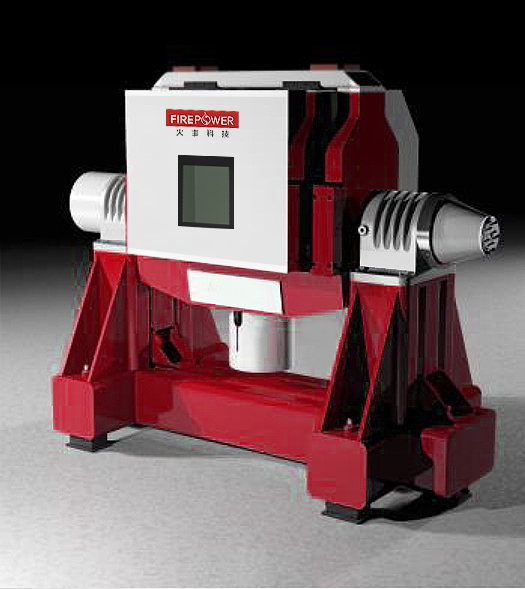

    Product Display



    Main Applications



    Factory photos




    FAQ


    Q1. What is your lead time?
    A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.


    Q2. How does your factory do regarding quality control?
    A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
    1) We produce product according agreed technical requirements strictly;
    2) We do full tests according to test methology;
    3) We have a professional QA/QC team to ensure the quality.
    4) We provide test report to customer to confirm before shipment;
    5) If any unit was confirmed by customer and us not consistent with agreed specification or test report, we accept replacement/return/refund till customer's acceptance.


    Q3. Do you accept OEM or ODM order?
    A: Yes, we are a professional manufacturer that can provide OEM and ODM services according to customer needs


    Q4. What are your terms of delivery?
    A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.


    Q5. What is the payment way?
    A: TT, L/C, Pay Later, West Union,Online Bank Payment.


    Q6. What is warranty?
    A: Standard 12 months and negotiable for longer warranty.


    Q7. What is the packing quality?
    A: For sample order, we use carton box with sponge, and batch order, we use wooden box.


    Q8. What is final price?
    A: If standard product, price as in the price table, if customized product, price by checking with sales, so as to different qty needs.


    Q9. How to choose product?
    A: We are a professional manufacturer that can provide standard product on shafe, or products by customer's specific requirements;
    1) Customer raise some certain different technical requirements based on standard products;
    2) Customer provide specific and comprehensive technical requirements to sales to evaluate;
    3) Customer explain application to sales to provide suitable products;
